How to Access Designer Models in Templates?

When building modules using Intent Architect, it is very common to want to use the metadata you have modeled in the designers as part of the code generation. For example, if you've built a Domain model, you might want to generate a set of C# classes as the code realization of that domain model. This article covers how to achieve this.

Overview of Designer Models and Their Usage Within Templates

When using Intent Architect, you build up metadata models in various designers. For example, in the Domain Designer, you create a domain model reflecting your business domain. This designer describes concepts like Classes, Attributes, Associations, etc. All of these concepts are models in their own right and collectively make up your domain model.

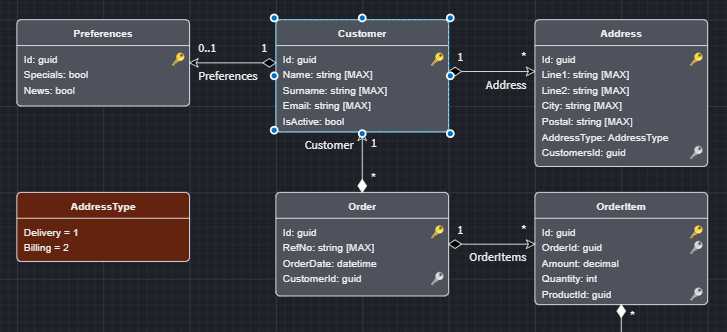

Domain Model Example

If you select individual items in the Domain Designer, you can see what type it is by looking at the Properties pane.

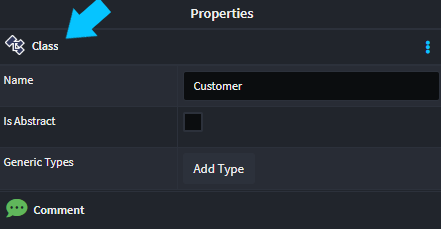

For example, if you select Customer, you can see this is of type Class. In code, this will be represented by a ClassModel.

Class Model

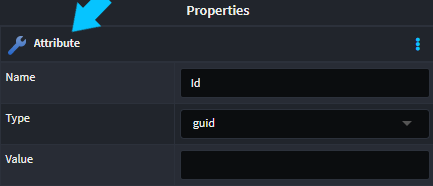

Now, if you select an attribute on the Customer, you can see this is of type Attribute. In code, this will be represented by an AttributeModel.

Attribute Model

These models can then be used as data for your templates to work with. Here is a simple example of reading this data from within a template:

// Get the Domain Designer for my currently running Application
var domainDesigner = ExecutionContext.MetadataManager.Domain(ExecutionContext.GetApplicationConfig().Id);
var classModels = domainDesigner.GetClassModels();

Based on what we can visually see in the Domain Designer above, this would be a list of 5 ClassModels, namely:

  • Preferences
  • Customer
  • Address
  • Order
  • OrderItem

This is a simplified view of what the ClassModel looks like:

public class ClassModel : ...
{
    public const string SpecializationType = "Class";
    public const string SpecializationTypeId = "04e12b51-ed12-42a3-9667-a6aa81bb6d10";
    public string Name { get; }
    public bool IsAbstract { get; }
    public IEnumerable<string> GenericTypes { get; }
    public IEnumerable<IStereotype> Stereotypes { get; }
    public FolderModel Folder { get; }
    public IList<AttributeModel> Attributes { get; }
    ...
}

There are two common scenarios for accessing this data:

  • Binding Models to the template within the Module Designer.
  • Fetching the models using MetadataManager from within a template.
Note

ClassModel and the Domain extension method off of ExecutionContext will not be present in your own module by default. As Intent Architect is a modular extensible platform, these concepts are bundled and packaged with the Domain Designer. The next section covers how to set this up.

Accessing the Designer Data in Your Own Module

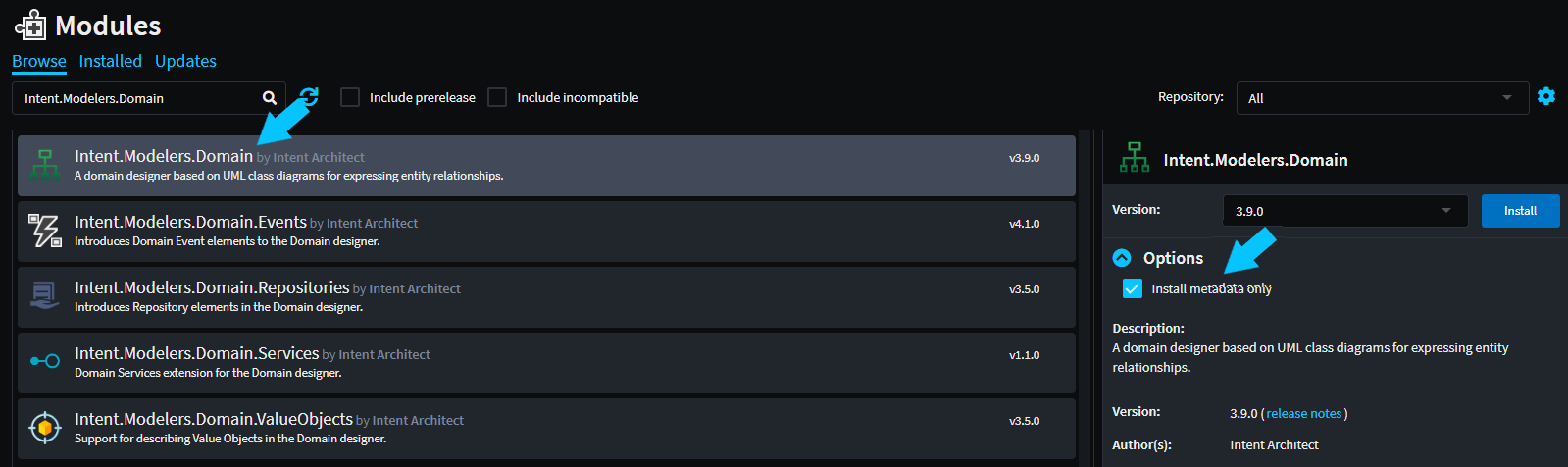

Assuming you are building your own Module and you would like to access the metadata from the Domain Designer, you can simply install the Intent.Modelers.Domain with the Install Metadata only option checked. The option can be made visible by clicking on the Options arrow:

Install Domain Designer

Next, you may need to add the Designer's NuGet package to your solution. Simply add the Intent.Modules.Modelers.Domain package to your module in your IDE (e.g., Visual Studio).

Note

Certain actions in the Module Builder will cause the designer package to be automatically added. The NuGet package name is convention-based off the Module name, i.e., the same as the module name with a .Modules after the Intent part. For example, Intent.Modelers.Domain's NuGet package is Intent.Modules.Modelers.Domain. The version numbers of NuGet packages correlate with the version of the Modules, e.g., a version 3.9 module will have a version 3.9 NuGet package.

You should now have access to all the APIs you need to access the Designer data, which will be in the Intent.Modelers.Domain.Api namespace. This includes:

  • Designer's Model classes
  • Extension methods to MetadataManager for accessing the designer's Model classes
  • Stereotype extension methods
Note

This article uses the Domain Designer as an example, but the same principles apply to any of the Designer Modules.

Designer Extensions

It is worth noting that Designers can be extended, i.e., new functionality added through additional modules. For example, the Intent.Modelers.Services.CQRS module extends the Intent.Modelers.Services designer, introducing CQRS paradigm models to the Services Designer.

This works exactly the same as mentioned above. However, note that you would need to add these Modules and NuGet packages if you want to access the extension data.

Common Intent Architect Designers

Domain Designer (Intent.Modelers.Domain)

This Designer is centered around describing your Domain / Persistence model.

Common Extensions:

  • Modelers.Domain.ValueObjects
  • Modelers.Domain.Services
  • Modelers.Domain.Events

Services Designer (Intent.Modelers.Services)

This Designer is used to model your Services and, more broadly, your application layer.

Common Extensions:

  • Modelers.Services.CQRS
  • Modelers.Services.DomainInteractions
  • Modelers.Services.EventInteractions
  • Modelers.Services.GraphQL

Visual Studio Designer (Intent.Modelers.Services)

Model how Intent Architect integrates with Visual Studio.

Accessing the Models in Template Code

As mentioned previously, these models can be accessed through extension methods off the IMetadataManager interface. For example:

// Get the Domain Designer for my currently running Application
var domainDesigner = ExecutionContext.MetadataManager.Domain(ExecutionContext.GetApplicationConfig().Id);
// Get all the Class models from the Domain Designer
var classModels = domainDesigner.GetClassModels();

The IMetadataManager interface can be accessed in the following ways:

Within a Template Which Inherits from IntentTemplateBase

IMetadataManager is available on the template instance through the ExecutionContext.MetadataManager property.

var metadataManager = ExecutionContext.MetadataManager;
var metadataManager = this.ExecutionContext.MetadataManager;

Within a FactoryExtension

IMetadataManager is available on the IApplication interface.

public class MyFactoryExtension : FactoryExtensionBase
{
    ...
    protected override void OnAfterTemplateRegistrations(IApplication application)
    {
        var metadataManager = application.MetadataManager;
    }
}
Note

This section covers fetching the Designer models directly within your template. Another way to get access to Designer Models in your templates is to data bind them to the template. In this scenario, the Model(s) will be injected into your template's constructor. Data-binding Designer Models to Templates
