Intent.Eventing.AzureEventGrid

This module provides patterns for working with Azure Event Grid using a flexible pipeline-based architecture that supports middleware behaviors for cross-cutting concerns.

What is Azure Event Grid?

Azure Event Grid is a cloud-based event routing service that enables event-driven architectures by facilitating the seamless communication of events between different services and applications. It abstracts the complexities of event routing, allowing developers to focus on building scalable and decoupled systems. Azure Event Grid supports various event sources and handlers, making it a versatile choice for integrating disparate systems and services.

For more information on Azure Event Grid, check out their official docs.

Pipeline Architecture

This module implements a behavior-driven pipeline pattern that allows you to add middleware behaviors for both publishing and consuming messages. This enables clean separation of concerns for cross-cutting functionality like logging, retry logic, validation, and custom processing.

Key Components

• Publisher Pipeline: Processes outbound messages before sending to Event Grid
• Consumer Pipeline: Processes inbound messages before handler execution
• Behaviors: Middleware components that can inspect, modify, or act on messages
• Cloud Event Context: Provides access to Event Grid extension attributes and metadata

Modeling Integration Events

Modeling Integration Events can be achieved from within the Services designer. This module automatically installs the Intent.Modelers.Eventing module which provides designer modeling capabilities for integration events and commands. For details on modeling integration events and commands, refer to its README.

Specifying Topics and Event Domains

Working with Azure Event Grid requires that Messages be assigned to either an Event Grid Custom Topic or an Event Domain Topic.

Custom Topics

Custom Topics are standalone event routing destinations that need to be created in advance, unless you are using Infrastructure as Code to maintain this for you. When creating a new Message, you will need to specify the Topic Name.

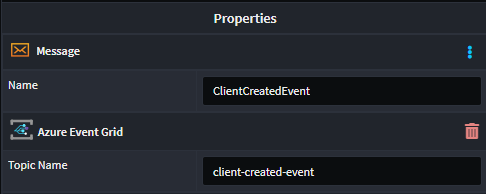

This module will automatically assign a Topic Name when you create a new Message and you can alter it by modifying the Topic Name property on the selected Message.

Event Domains

Event Domains provide a management tool for large numbers of Event Grid topics related to the same application. They allow you to group multiple topics under a single domain and manage them collectively. When using Event Domains, messages are routed to topics within the domain based on the event's type.

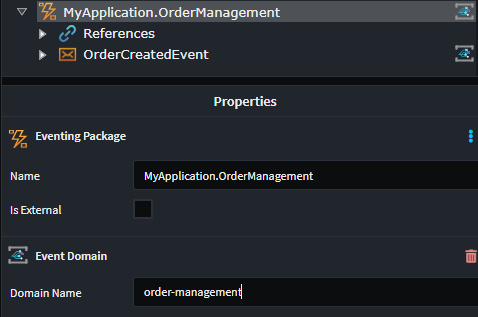

Event Domains can be modeled by adding an Event Domain stereotype to your Eventing Package. Configure the Domain Name property to specify which domain the events should be published to.

Message Publishing

Message publishing can be done through the IEventBus interface using the Publish method. The interface supports publishing with additional metadata:

public interface IEventBus
{
    void Publish<T>(T message) where T : class;
    void Publish<T>(T message, IDictionary<string, object> additionalData) where T : class;
    // ...
}

Publishing with Extension Attributes

You can include Event Grid extension attributes and subject information:

// Basic publishing
_eventBus.Publish(new ClientCreatedEvent { Id = clientId });

// Publishing with extension attributes
_eventBus.Publish(new ClientCreatedEvent { Id = clientId }, new Dictionary<string, object>
{
    ["Subject"] = $"clients/{clientId}",
    ["Priority"] = "High",
    ["CorrelationId"] = correlationId
});

Message Consumption

For every message subscribed to in the Services Designer will receive its own Integration Event handler.

Accessing Event Context

In your handlers, you can access Event Grid extension attributes through the IEventContext:

public class ClientCreatedIntegrationEventHandler : IIntegrationEventHandler<ClientCreatedEvent>
{
    private readonly IEventContext _eventContext;

    public ClientCreatedIntegrationEventHandler(IEventContext eventContext)
    {
        _eventContext = eventContext;
    }

    public async Task HandleAsync(ClientCreatedEvent message, CancellationToken cancellationToken = default)
    {
        // Access extension attributes
        if (_eventContext.AdditionalData.TryGetValue("Priority", out var priority))
        {
            // Handle high priority messages differently
        }

        // Business logic here
        throw new NotImplementedException();
    }
}

Extensibility with Custom Behaviors

You can create custom behaviors to handle cross-cutting concerns:

Publisher Behaviors

public class LoggingPublisherBehavior : IAzureEventGridPublisherBehavior
{
    private readonly ILogger<LoggingPublisherBehavior> _logger;

    public LoggingPublisherBehavior(ILogger<LoggingPublisherBehavior> logger)
    {
        _logger = logger;
    }

    public async Task<CloudEvent> HandleAsync(CloudEvent cloudEvent, CloudEventBehaviorDelegate next, CancellationToken cancellationToken = default)
    {
        _logger.LogInformation("Publishing event {EventType} with ID {EventId}", cloudEvent.Type, cloudEvent.Id);

        var result = await next(cloudEvent, cancellationToken);

        _logger.LogInformation("Successfully published event {EventId}", cloudEvent.Id);
        return result;
    }
}

Consumer Behaviors

public class ValidationConsumerBehavior : IAzureEventGridConsumerBehavior
{
    public async Task<CloudEvent> HandleAsync(CloudEvent cloudEvent, CloudEventBehaviorDelegate next, CancellationToken cancellationToken = default)
    {
        // Validate cloud event structure
        if (string.IsNullOrEmpty(cloudEvent.Source))
        {
            throw new InvalidOperationException("Cloud event source is required");
        }

        return await next(cloudEvent, cancellationToken);
    }
}

Registering Custom Behaviors

public static IServiceCollection ConfigureEventGrid(this IServiceCollection services, IConfiguration configuration)
{
    // ... existing configuration ...

    // Add custom behaviors
    services.AddScoped<IAzureEventGridPublisherBehavior, LoggingPublisherBehavior>();
    services.AddScoped<IAzureEventGridConsumerBehavior, ValidationConsumerBehavior>();

    return services;
}

Configuring Event Grid

Publisher Configuration

Event Grid publishers are configured in your dependency injection setup. The configuration supports both Custom Topics and Event Domains:

services.Configure<AzureEventGridPublisherOptions>(options =>
{
    // Configure Custom Topics
    options.AddTopic<ClientCreatedEvent>(
        configuration["EventGrid:Topics:ClientCreatedEvent:Key"]!,
        configuration["EventGrid:Topics:ClientCreatedEvent:Endpoint"]!,
        configuration["EventGrid:Topics:ClientCreatedEvent:Source"]!);

    // Configure Event Domains
    options.AddDomain(
        configuration["EventGrid:Domains:MainDomain:Key"]!,
        configuration["EventGrid:Domains:MainDomain:Endpoint"]!,
        domain =>
        {
            domain.Add<OrderCreatedEvent>(configuration["EventGrid:Topics:OrderCreatedEvent:Source"]!);
        });
});

Application Settings

Configure your Event Grid settings in appsettings.json:

{
  "EventGrid": {
    "Topics": {
      "ClientCreatedEvent": {
        "Source": "client-created-event",
        "Key": "<Azure Event Grid Key>",
        "Endpoint": "https://client-created-event.your-region.eventgrid.azure.net/api/events"
      },
      "OrderCreatedEvent": {
        "Source": "order-created-event"
      }
    },
    "Domains": {
      "MainDomain": {
        "Key": "543SDGsdfwertLFHXm0KnbK7gEar9VnY5ihQio8Dh456dfgdfyfdghfgh9BDACrIdLPXJ3w3AAABAZEdfgh5",
        "Endpoint": "https://main-domain.your-region.eventgrid.azure.net/api/events"
      }
    }
  }
}

Note

This module will not generate the consumer code for you. Look at the Related Modules section to see which modules can provide you with that capability.

Related Modules

Intent.AzureFunctions.AzureEventGrid

This module handles the consumer code for Azure Event Grid when Azure Functions is selected as the hosting technology. It includes support for the new pipeline architecture and behavior system.

Note

Not seeing the hosting technology you're looking for? Please reach out to us on GitHub or email us at support@intentarchitect.com, and we'll be happy to help.
