What's new in Intent Architect (October 2024)

Welcome to the October 2024 edition of highlights of What's New in Intent Architect.

We are thrilled to announce the official release of Intent Architect version 4.3! This update brings a range of exciting new features and enhancements, including powerful front-end design capabilities and much more. You can find the full release details here.

To explore the new front-end capabilities in action, don't miss our Front-end automation with Blazor webinar. Plus, get hands-on experience by checking out our sample implementation here.

Update details

Build Blazor front-ends

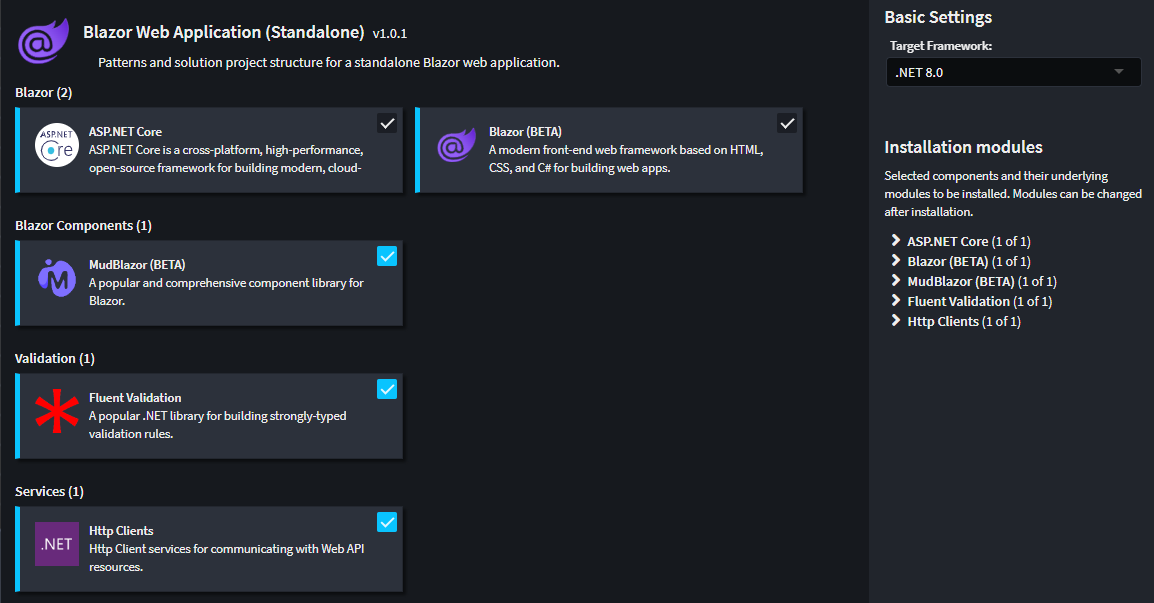

We have a new Blazor application template to quickly setup and model your front-end Blazor applications.

New Blazor Application Template

This will create an Intent Architect application for modeling Blazor applications using the MudBlazor component library.

For a comprehensive overview, check out our Front-end automation with Blazor webinar. Plus, get hands-on experience by checking out our sample implementation here.

Available from:

  • Intent Architect 4.3+
  • Intent.Blazor 1.0.0-beta.1

Map CQRS Operations and Application Services to Repository Operations

Add Operations on Repositories in the Domain designer and invoke them from Services using mappings in the Services designer.

Example Repository with Operation:

Example Domain

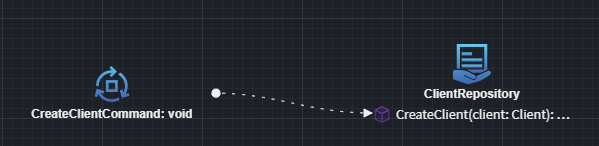

Example Command:

Example Command

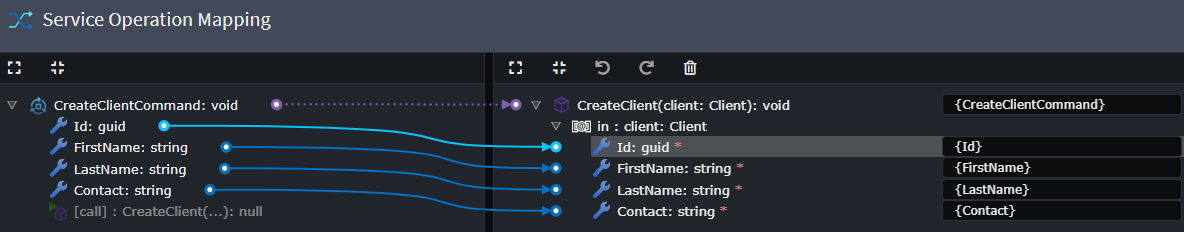

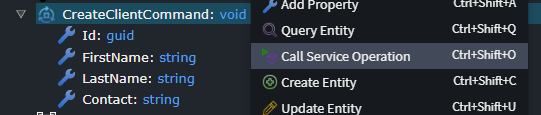

Example invocation from Command to Repository Operation:

Mapping between Command and Repository

Data Mapping

Available from:

  • Intent.Modelers.Services.DomainInteractions 1.1.4

Ensure you are using at least the versions of the following modules (if you have them installed):

  • Intent.Application.MediatR.CRUD 6.0.12
  • Intent.Application.ServiceImplementations.Conventions.CRUD 5.0.9

CosmosDB Module Enums stored as String

CosmosDB module now allows Enums to be stored as strings in your documents.

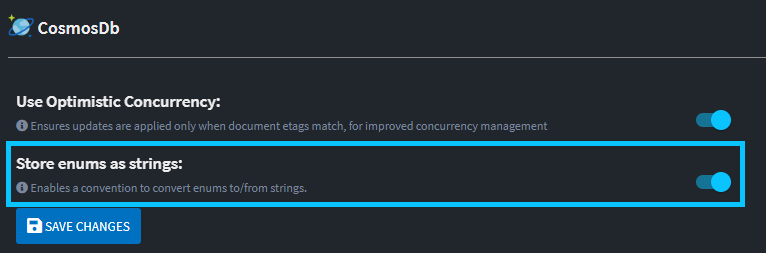

You can switch this on with the "Store enums as string" setting.

Store Enums As String Setting

The Document's that represent Entities in the Infrastructure layer will then decorate the Enum Properties with a JsonConverter attribute when the setting is switched on.

[JsonConverter(typeof(EnumJsonConverter))]
public EnumExample EnumExample { get; set; }

This will allow Enums to be persisted in CosmosDB as strings however it is also durable in that it can also parse Enums in their int representations allowing for backward compatibility.

Available from:

  • Intent.CosmosDB 1.2.4

OpenTelemetry Module Enhanced with Expanded Configurations and New Export Options

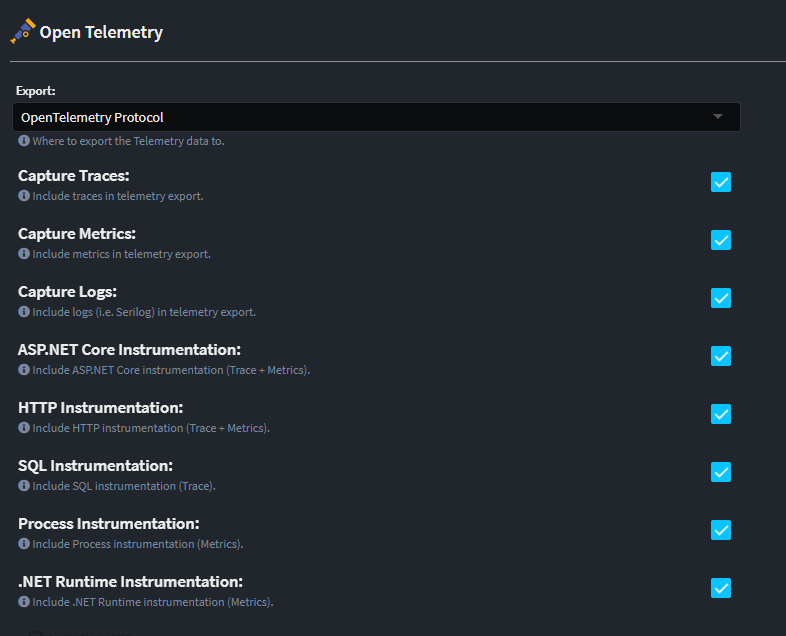

The OpenTelemetry module now features expanded configuration options, allowing users to enable metrics alongside the previously available traces and logs. Additional instrumentation has been introduced with Trace or Metric indicators, providing greater flexibility in monitoring applications.

Full Module Settings

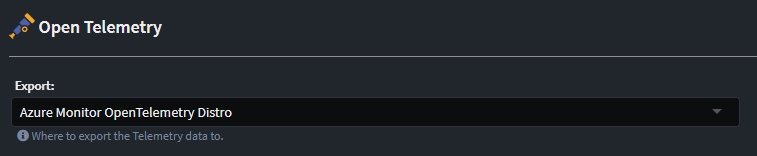

Moreover, a new export option, "Azure Monitor OpenTelemetry Distro," has been added, which offers hybrid capabilities that blend OpenTelemetry and Azure Application Insights' proprietary features, such as "Live Metrics."

Azure Monitor Open Telemetry Distro

Users can also configure the application instance name in conjunction with the application service name for better identification.

"OpenTelemetry": {
    "ServiceName": "My Sample Service",
    "ServiceInstanceId": "Development"
}

Available from:

  • Intent.OpenTelemetry 2.2.0

Import Stored Procedures for Repositories

Import definitions of Stored Procedures from SQL Server into your Domain Repository.

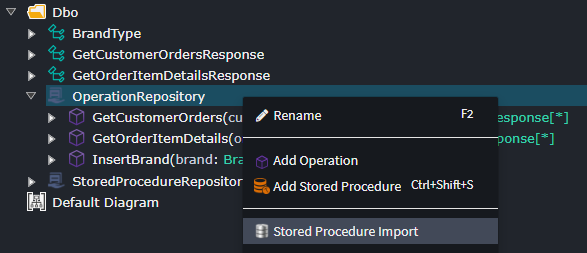

You can right click on a Repository and select Stored Procedure Import.

Stored Procedure Import Operations

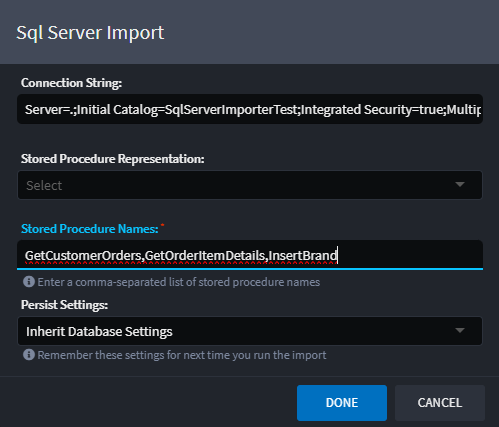

Specify names of stored procedures as a comma separated list.

Import prompt

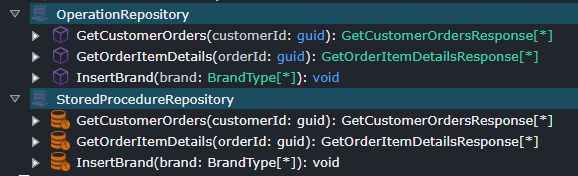

Import Stored Procedures either as Operations or Specialized elements.

Stored Proc Types

Note

Stored Procedure elements will be phased out in favor of using Operations once the Operations variant has reached parity with the specialized elements.

Available from:

  • Intent.SqlServerImporter 1.0.6

C# code management: Overriding return statements is now easier

Previously when wanting to "override" a generated return statement in a fully managed method you would need to qualify the // IntentIgnore with a (Match = "return"), now only a simple // IntentIgnore is required:

// Generated:
[IntentFully]
public int Method()
{
    return 0;
}

// What was previously required to override the return statement:
[IntentFully]
public int Method()
{
    // IntentIgnore(Match = "return")
    return 1;
}

// What is now required to override the return statement:
[IntentFully]
public int Method()
{
    // IntentIgnore
    return 1;
}

Available from:

  • Intent.OutputManager.RoslynWeaver 4.7.7

Specify implicit (global) usings for .csproj files

It is now possible to specify implicit usings (global usings) to add to .csproj files:

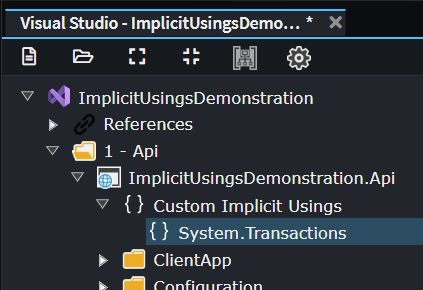

Example of using custom implicit usings in the Visual Studio designer

The above will then add the following to the .csproj file:

<ItemGroup>
  <Using Include="System.Transactions" />
</ItemGroup>

Available from:

  • Intent.VisualStudio.Projects 3.8.1

XML doc comment generation for repositories

  • Comments captured on repositories and their operations in the Domain designer will now cause corresponding XML doc comments to also be generated in the output files.
