Invoking HTTP Endpoints

In distributed architectures, services often need to communicate with one another. Writing service clients manually can be time-consuming, error-prone, and inconsistent. A Service Proxy simplifies this process by allowing developers to reference already defined services in other Intent Architect applications and automatically generate strongly typed clients that adhere to the specified service contract.

The generated Service Proxy acts as an intermediary between an application and an external service, providing a strongly typed API that abstracts away the complexity of request configuration and client setup.

This article explains how to model Perform Invocation relationships which are then realized in generated code as Service Proxies which will use HTTP to communicate with target endpoints.

Note

Historically, Modeling Service Proxies was required to invoke HTTP Endpoints, although that method is still fully supported, going forward the approach of using Perform Invocation as described in this article is recommended.

This article will describe the process of creating a Service Proxy from an example eShop.Invoicing application to an eShop.Customers application in the following solution:

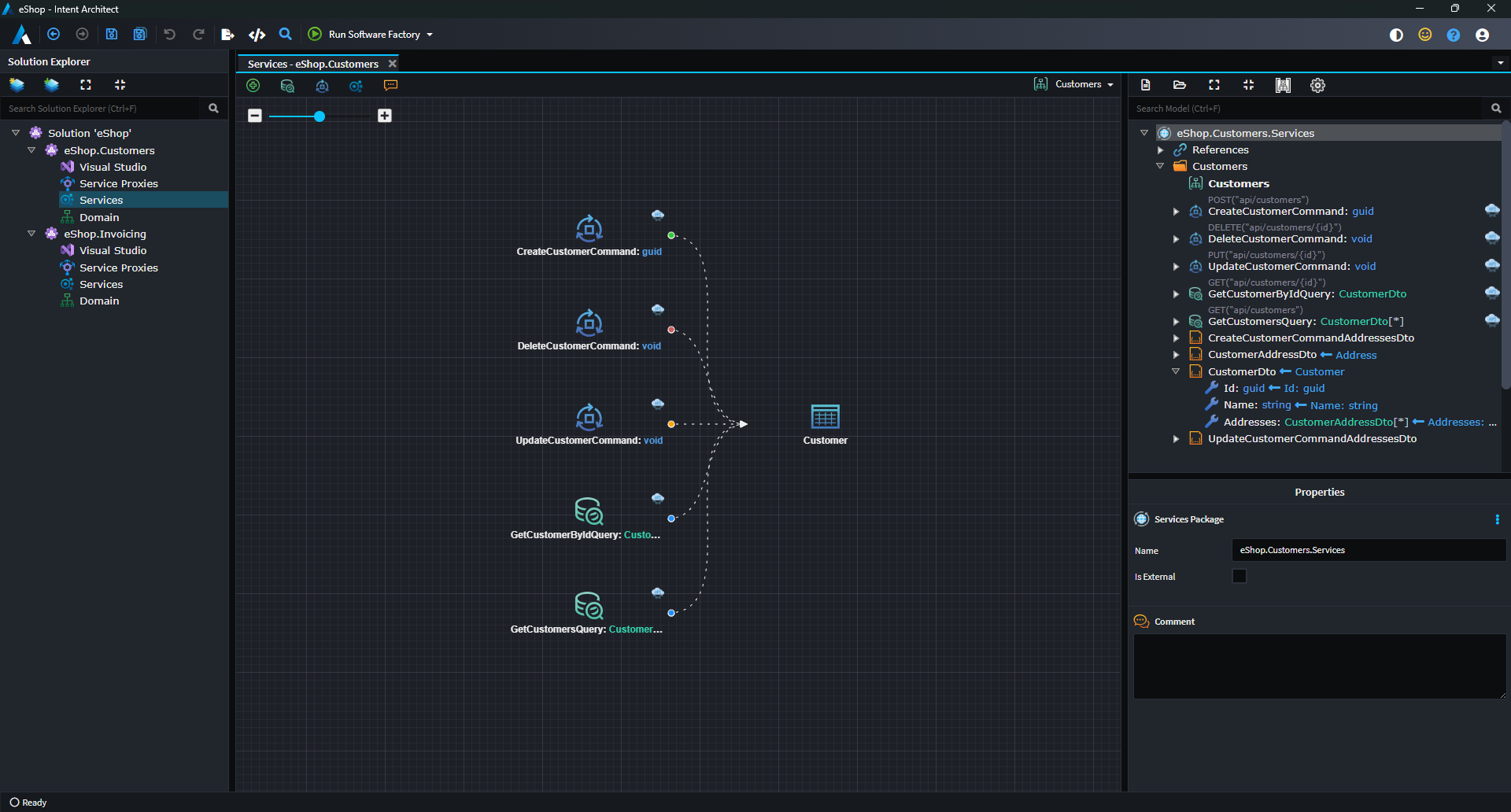

The Services designer for the eShop.Customers application has the following CQRS requests modeled:

Adding the Customer CQRS requests to a diagram

We will start by adding the CQRS requests from the eShop.Customers applications onto a diagram in the eShop.Invoicing application's Services designer.

In the Services designer of the eShop.Invoicing application:

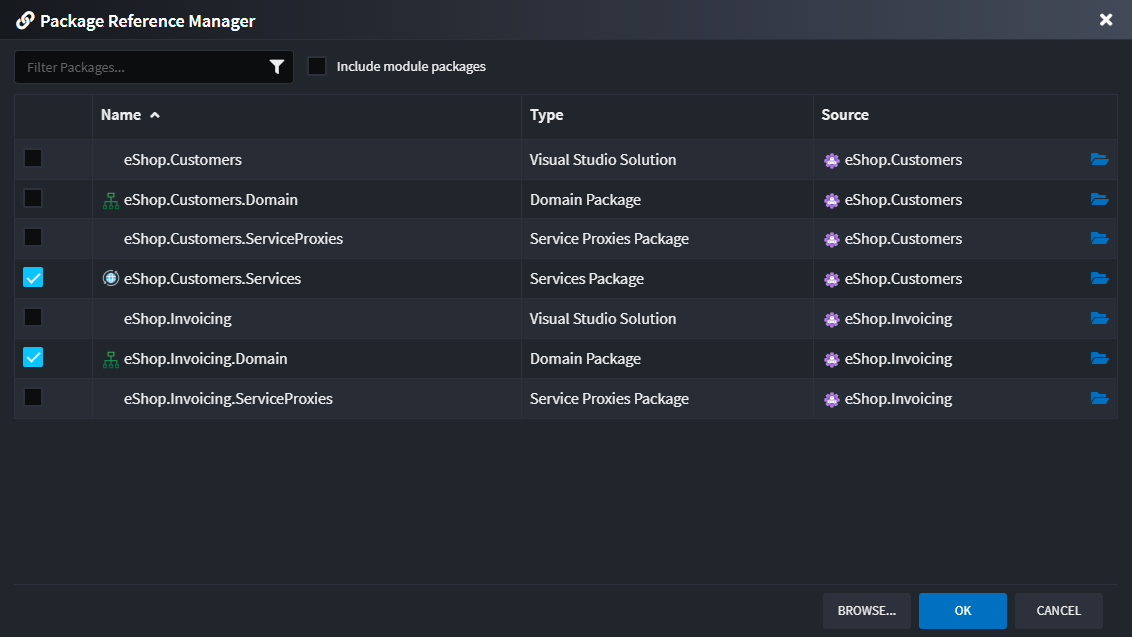

• Add a package reference to the eShop.Customers.Services.



  This will make the CQRS requests from the referenced package available for use in our designer.

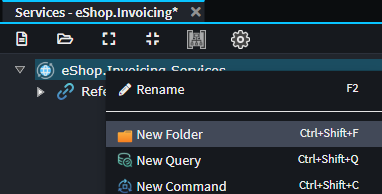

• Right-click the package on the designer and select the New Folder option:



• Give the folder a name, such as Customers.

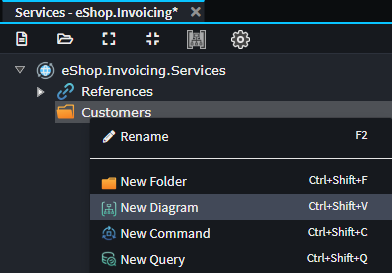

• Right-click the folder and select the New Diagram option:



• Give the diagram a name such as Customers.

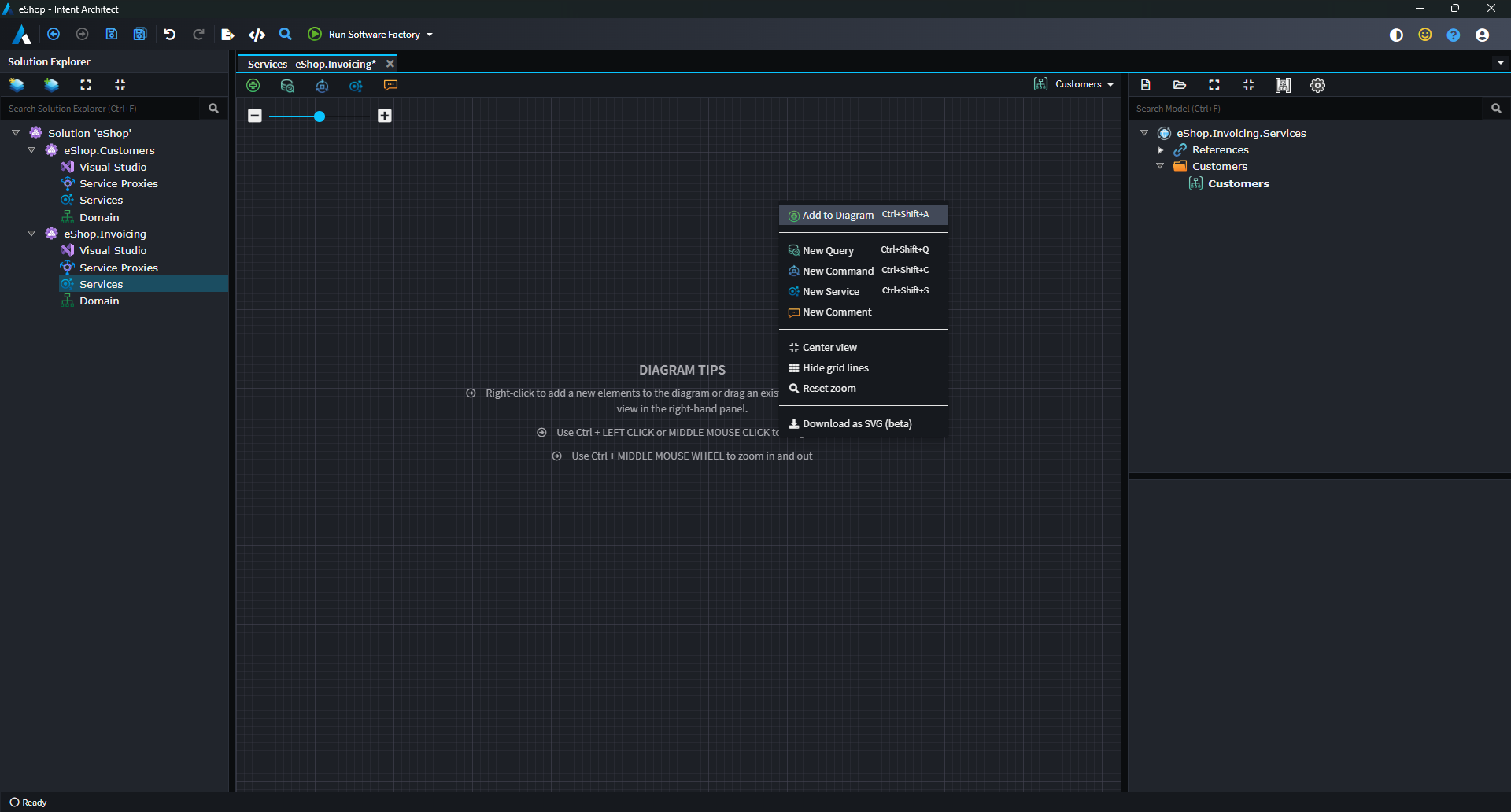

• Right-click the background of the diagram and select the Add to Diagram option:

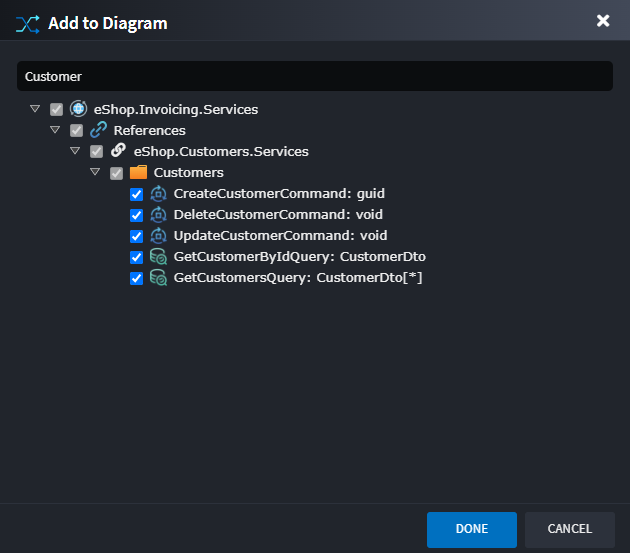

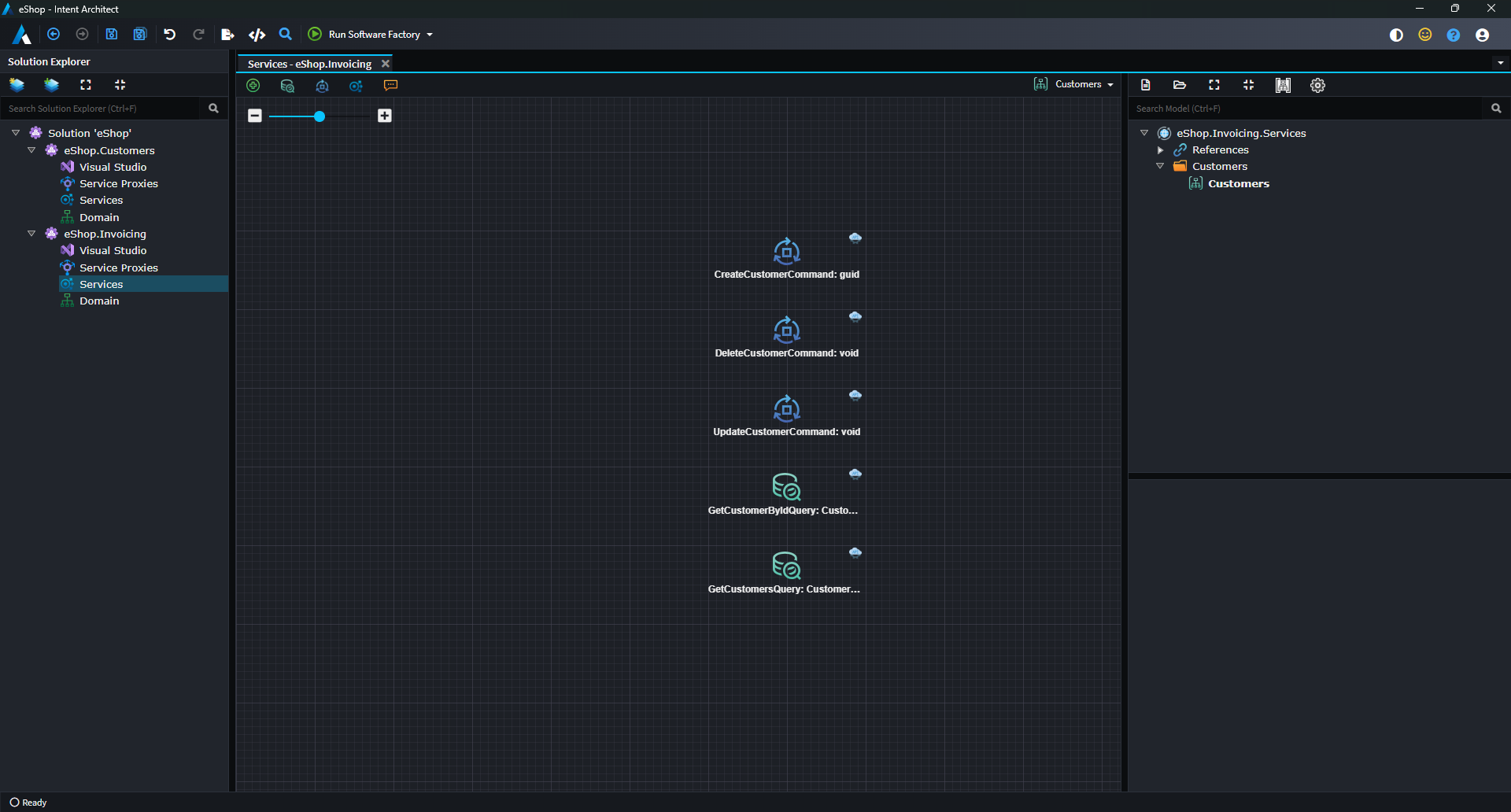

• You can filter by Customer and then select all the Commands and Queries and then press DONE:





Creating a request and have it invoke a CQRS request over HTTP

• Right-click the diagram and choose the New Query option:



• Give the Command a name such as GetCustomerByIdCommand.

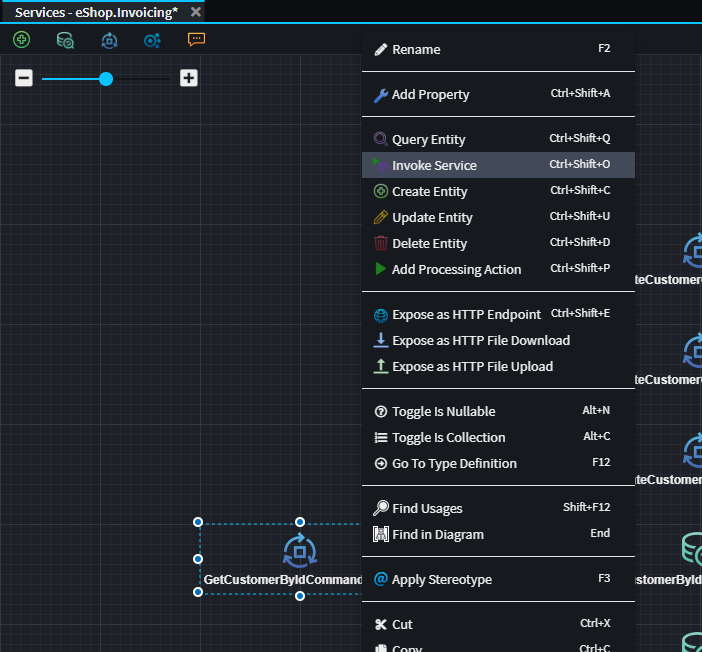

• Right-click the Command and select the Invoke Service option:



• Click the GetCustomersByIdQuery to set it as the Target End.

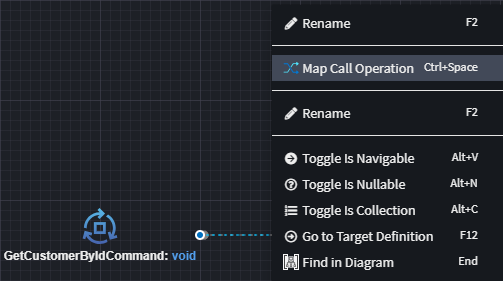

• Right-click the association line and select the Map Call Operation option:

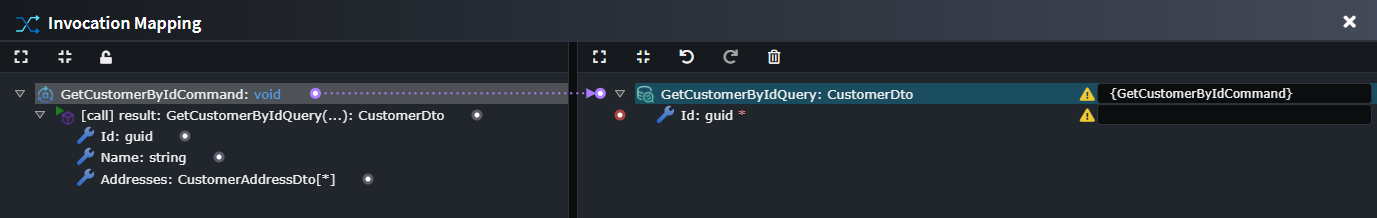

• Double click the GetCustomerByIdQuery element in the right-pane to map the command from the left-pane to it:

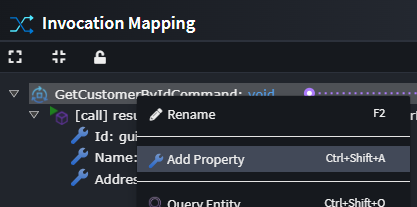

• Right-click the CommandCustomerByIdCommand in the left pane and select the Add Property option:



• Give it a name of Id and type of Guid:

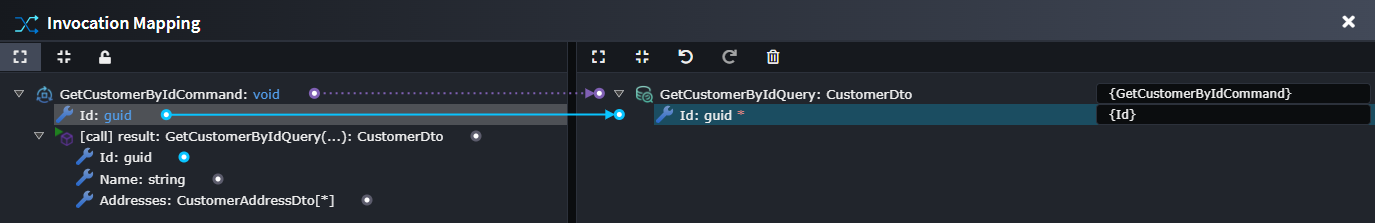

• You can now double click the Id: guid in the right-pane to specify that its field needs to be populated from the Id on the command in the left pane:



• Press DONE.

Run the Software Factory

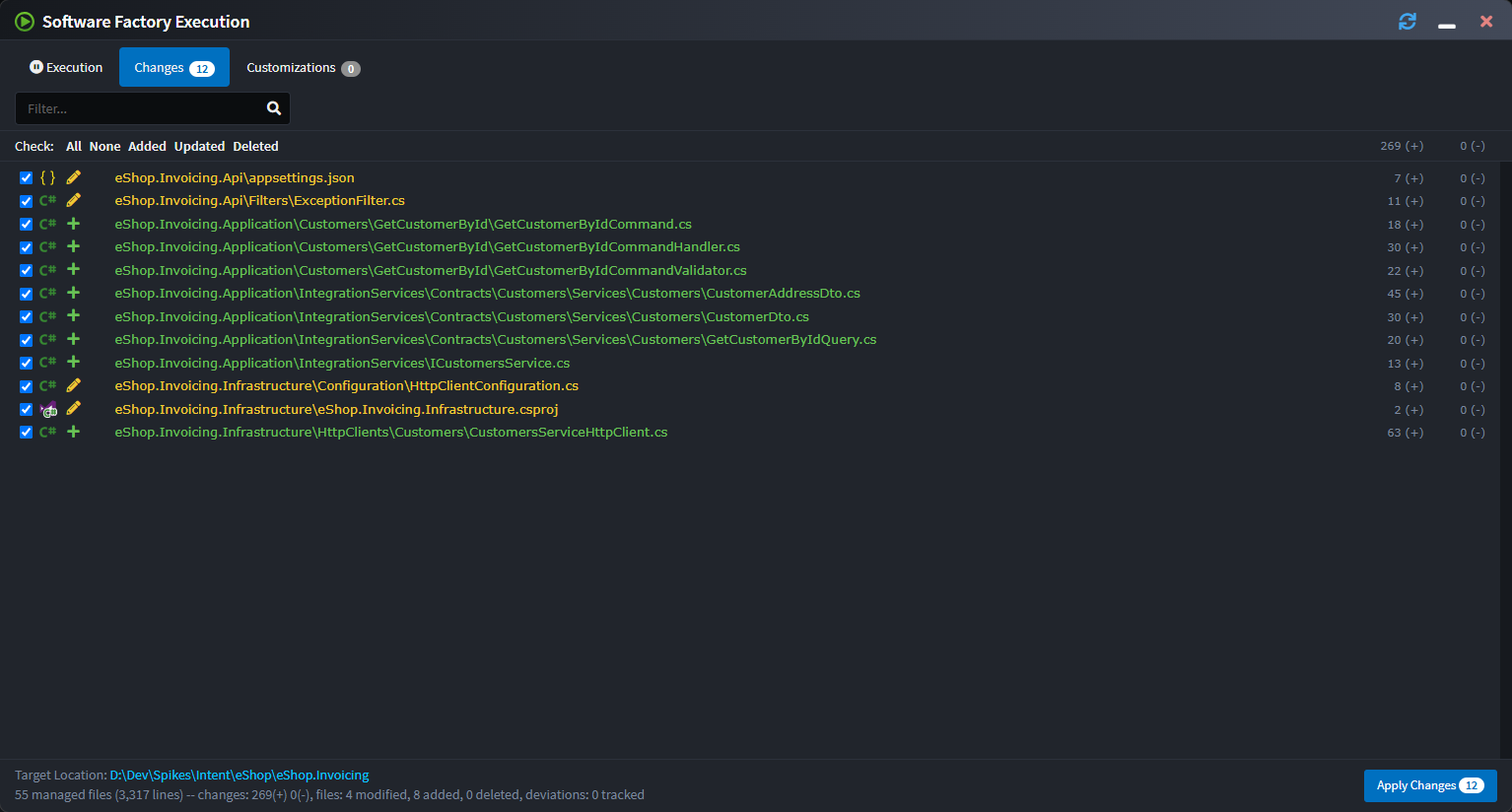

Run the Software Factory and review the proposed changes:

Reviewing the changes, observe the following in particular:

• ICustomersService is being is being created and registered up in HttpClientConfiguration against the also created CustomersServiceHttpClient.
• Other related contract files such as the Command and its referenced DTOs are being created.
• The GetCustomerByIdCommandHandler has an implementation as follows:

public class GetCustomerByIdCommandHandler : IRequestHandler<GetCustomerByIdCommand>
{
    private readonly ICustomersService _customersService;

    [IntentManaged(Mode.Merge)]
    public GetCustomerByIdCommandHandler(ICustomersService customersService)
    {
        _customersService = customersService;
    }

    [IntentManaged(Mode.Fully, Body = Mode.Fully)]
    public async Task Handle(GetCustomerByIdCommand request, CancellationToken cancellationToken)
    {
        var result = await _customersService.GetCustomerByIdAsync(new GetCustomerByIdQuery
        {
            Id = request.Id
        }, cancellationToken);
    }
}

Invoking Service Operations

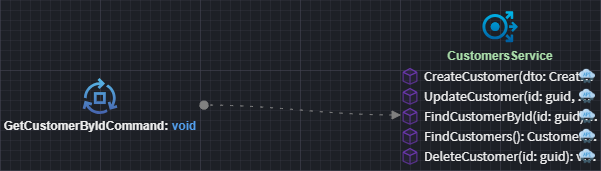

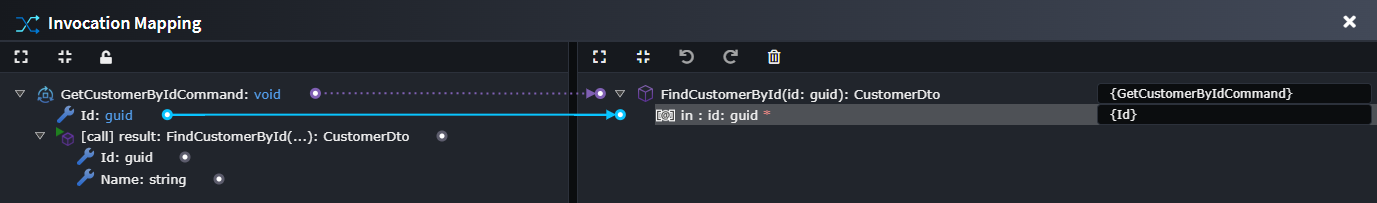

The procedure for invoking traditional Service Operations is essentially the same as the above where Invoke Service associations are created with service operations as their target end:

Service Proxy for a 3rd party service

You can have a proxy created for a third-party services and invoke it, provided the service definition is modeled in Intent Architect. Invoking the service follows the same steps described above.

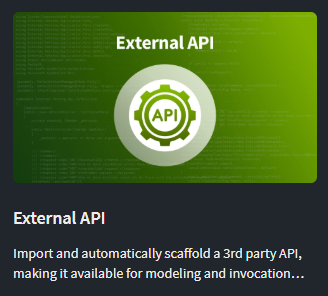

To represent a third-party service, you must create a separate application in your Intent Architect solution. Use the External API application template for this purpose:

• Right-click the solution in Intent Architect and select Create New Application.
• Choose the External API application template.

• Give the application a clear, descriptive name to identify it as a third-party service.
• An empty Intent Application will be created and added to your solution, pre-configured with the necessary modules to model an external API.

Using Intent.OpenApi.Importer

If the third-party service provides a OpenApi document, you can import it directly into the Services Designer using the Intent.OpenApi.Importer module.

Once imported, follow the steps outlined above to invoke the service.

Note

The Intent.OpenApi.Importer module is automatically installed when creating an application using the External API template.

Manually Modeling the Service

If no OpenApi document is available, you can manually model the third-party service in the Service Designer. Once modeled, follow the same steps above to invoke the service.

Summary

This article guided you through using the Invoke Service association to invoke HTTP endpoints.

Next steps

You can try invoking other endpoints in the same way as described above.
