Intent.AspNetCore.Grpc

This module allows exposing Services Operations, Commands and Queries over gRPC using the Grpc.AspNetCore NuGet package.

gRPC is a modern, open source, high-performance remote procedure call (RPC) framework that can run anywhere. gRPC enables client and server applications to communicate transparently, and simplifies the building of connected systems.

Exposing services over gRPC

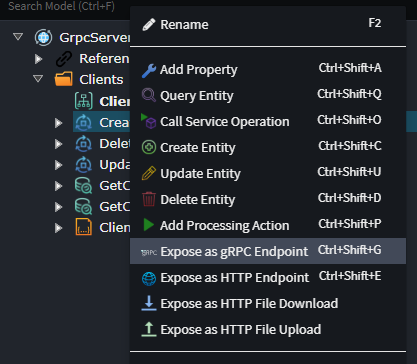

To expose a service over gRPC right-click it in the designer and select the Expose as gRPC Endpoint option:

Expose as gRPC Endpoint context menu option

This option is available on the following element types:

  • Command
  • Operation
  • Query
  • Service (equivalent to using the option on all the Operations of the Service)

In the Intent Architect designers you can tell at a glance which services are exposed as they will have a gRPC icon visible on them on diagrams and the tree view:

gRPC icons visible on exposed services

Generated patterns for exposed services

Proto files for messages

For each exposed service, required contracts are recursively identified and corresponding Protobuf messages are generated for them along with closed generic versions of contracts as applicable, for example:

syntax = "proto3";

option csharp_namespace = "GrpcServer.Api.Protos.Messages.Clients";

package grpc_server.api.protos.messages.clients;

message ClientDto {
    string id = 1;
    string name = 2;
}

Proto files for services

For CQRS services, here is an example:

syntax = "proto3";

import "google/protobuf/empty.proto";
import "google/protobuf/wrappers.proto";
import "Messages/Clients/ClientDto.proto";
import "Messages/Clients/CreateClientCommand.proto";
import "Messages/Clients/DeleteClientCommand.proto";
import "Messages/Clients/GetClientByIdQuery.proto";
import "Messages/Clients/GetClientsQuery.proto";
import "Messages/Clients/UpdateClientCommand.proto";

option csharp_namespace = "GrpcServer.Api.Protos.Services.Clients";

package grpc_server.api.protos.services.clients;

service Clients {
    rpc CreateClient (messages.clients.CreateClientCommand) returns (google.protobuf.StringValue);
    rpc DeleteClient (messages.clients.DeleteClientCommand) returns (google.protobuf.Empty);
    rpc UpdateClient (messages.clients.UpdateClientCommand) returns (google.protobuf.Empty);
    rpc GetClientById (messages.clients.GetClientByIdQuery) returns (messages.clients.ClientDto);
    rpc GetClients (messages.clients.GetClientsQuery) returns (messages.clients.ListOfClientDto);
}

For traditional services here is an example:

syntax = "proto3";

import "google/protobuf/empty.proto";
import "google/protobuf/wrappers.proto";
import "Messages/Clients/ClientCreateDto.proto";
import "Messages/Clients/ClientDto.proto";
import "Messages/Clients/ClientUpdateDto.proto";

option csharp_namespace = "GrpcServer.Api.Protos.Services";

package grpc_server.api.protos.services;

service ClientsTraditionalService {
    rpc CreateClient (ClientsTraditionalServiceCreateClientRequest) returns (google.protobuf.StringValue);
    rpc UpdateClient (ClientsTraditionalServiceUpdateClientRequest) returns (google.protobuf.Empty);
    rpc FindClientById (ClientsTraditionalServiceFindClientByIdRequest) returns (messages.clients.ClientDto);
    rpc FindClients (google.protobuf.Empty) returns (messages.clients.ListOfClientDto);
    rpc DeleteClient (ClientsTraditionalServiceDeleteClientRequest) returns (google.protobuf.Empty);
}

message ClientsTraditionalServiceCreateClientRequest {
    messages.clients.ClientCreateDto dto = 1;
}

message ClientsTraditionalServiceUpdateClientRequest {
    string id = 1;
    messages.clients.ClientUpdateDto dto = 2;
}

message ClientsTraditionalServiceFindClientByIdRequest {
    string id = 1;
}

message ClientsTraditionalServiceDeleteClientRequest {
    string id = 1;
}

Because gRPC services don't allow having more than a single parameter, all operations which have at least one parameter always have a corresponding "request" message generated for it.

.csproj entries for .proto files

<Protobuf /> entries are added to an <ItemGroup/> element in the .csproj file for all .proto files so that they are detected by the tooling:

<ItemGroup>
  <Protobuf Include="Protos\Messages\Clients\CreateClientCommand.proto" ProtoRoot="Protos" />
  <Protobuf Include="Protos\Messages\Clients\DeleteClientCommand.proto" ProtoRoot="Protos" />
  <Protobuf Include="Protos\Messages\Clients\GetClientByIdQuery.proto" ProtoRoot="Protos" />
  <Protobuf Include="Protos\Messages\Clients\GetClientsQuery.proto" ProtoRoot="Protos" />
  <Protobuf Include="Protos\Messages\Clients\UpdateClientCommand.proto" ProtoRoot="Protos" />
  <Protobuf Include="Protos\Messages\Clients\ClientDto.proto" ProtoRoot="Protos" />
  <Protobuf Include="Protos\Services\Clients\ClientsService.proto" ProtoRoot="Protos" GrpcServices="Server" />
  <Protobuf Include="Protos\Messages\Clients\ClientCreateDto.proto" ProtoRoot="Protos" />
  <Protobuf Include="Protos\Messages\Clients\ClientUpdateDto.proto" ProtoRoot="Protos" />
  <Protobuf Include="Protos\Services\ClientsTraditionalService.proto" ProtoRoot="Protos" GrpcServices="Server" />
</ItemGroup>

Partials classes for messages with helper methods

Due to there being a differences in the types available on ProtoBuf files and .NET, the C# files generated by the Grpc.AspNetCore NuGet package's source generator cannot be used as is for application layer contracts and require that they be "mapped" over.

To facilitate these mappings, each message has a corresponding partial class generated for it which includes two methods:

  • ToContract - Creates a new instance of an application contract type from the current instance of the protobuf type.
  • Create - A static factory method for creating a protobuf message type from an application contract instance.

For example:

public partial class ClientCreateDto
{
    public Application.Clients.ClientCreateDto ToContract()
    {
        return new Application.Clients.ClientCreateDto
        {
            Name = Name
        };
    }

    [return: NotNullIfNotNull(nameof(contract))]
    public static ClientCreateDto? Create(Application.Clients.ClientCreateDto? contract)
    {
        if (contract == null)
        {
            return null;
        }

        var message = new ClientCreateDto
        {
            Name = contract.Name
        };

        return message;
    }
}

The above convenience methods result in subsequent mapping code being concise and tidy.

Service implementations

The generated services have code which automatically uses the above mapping methods to dispatch service methods accordingly.

Here is an example of a CQRS service:

public class ClientsService : Clients.ClientsBase
{
    private readonly ISender _mediator;
    public ClientsService(ISender mediator)
    {
        _mediator = mediator ?? throw new ArgumentNullException(nameof(mediator));
    }
    public override async Task<StringValue> CreateClient(CreateClientCommand request, ServerCallContext context)
    {
        var result = await _mediator.Send(request.ToContract(), context.CancellationToken);
        return new StringValue { Value = result.ToString() };
    }
    public override async Task<Empty> DeleteClient(DeleteClientCommand request, ServerCallContext context)
    {
        await _mediator.Send(request.ToContract(), context.CancellationToken);
        return new Empty();
    }
    public override async Task<Empty> UpdateClient(UpdateClientCommand request, ServerCallContext context)
    {
        await _mediator.Send(request.ToContract(), context.CancellationToken);
        return new Empty();
    }
    public override async Task<ClientDto> GetClientById(GetClientByIdQuery request, ServerCallContext context)
    {
        var result = await _mediator.Send(request.ToContract(), context.CancellationToken);
        return ClientDto.Create(result);
    }
    public override async Task<ListOfClientDto> GetClients(GetClientsQuery request, ServerCallContext context)
    {
        var result = await _mediator.Send(request.ToContract(), context.CancellationToken);
        return ListOfClientDto.Create(result);
    }
}

Here is an example of a traditional service, also notice how concerns such as transactions, event bus publishing and validation are handled inline since unlike the CQRS above, there are not MediatR behaviors covering them:

public class ClientsTraditionalService : Protos.Services.ClientsTraditionalService.ClientsTraditionalServiceBase
{
    private readonly IClientsTraditionalService _appService;
    private readonly IValidationService _validationService;
    private readonly IUnitOfWork _unitOfWork;

    public ClientsTraditionalService(IClientsTraditionalService appService,
        IValidationService validationService,
        IUnitOfWork unitOfWork)
    {
        _appService = appService ?? throw new ArgumentNullException(nameof(appService));
        _validationService = validationService ?? throw new ArgumentNullException(nameof(validationService));
        _unitOfWork = unitOfWork ?? throw new ArgumentNullException(nameof(unitOfWork));
    }

    public override async Task<StringValue> CreateClient(
        ClientsTraditionalServiceCreateClientRequest request,
        ServerCallContext context)
    {
        await _validationService.Handle(request.Dto.ToContract(), context.CancellationToken);
        Guid result;

        using (var transaction = new TransactionScope(TransactionScopeOption.Required,
            new TransactionOptions { IsolationLevel = IsolationLevel.ReadCommitted }, TransactionScopeAsyncFlowOption.Enabled))
        {
            result = await _appService.CreateClient(request.Dto.ToContract(), context.CancellationToken);
            await _unitOfWork.SaveChangesAsync(context.CancellationToken);
            transaction.Complete();
        }
        await _eventBus.FlushAllAsync(context.CancellationToken);
        return new StringValue { Value = result.ToString() };
    }

    // ...
}

Exception translating interceptor for gRPC services

To translate exceptions to appropriate responses a gRPC interceptor is generated:

public class GrpcExceptionInterceptor : Interceptor
{
    private readonly IWebHostEnvironment _webHostEnvironment;

    public GrpcExceptionInterceptor(IWebHostEnvironment webHostEnvironment)
    {
        _webHostEnvironment = webHostEnvironment;
    }

    public override async Task<TResponse> UnaryServerHandler<TRequest, TResponse>(
        TRequest request,
        ServerCallContext context,
        UnaryServerMethod<TRequest, TResponse> continuation)
    {
        try
        {
            return await base.UnaryServerHandler(request, context, continuation);
        }
        catch (Exception e)
        {
            switch (e)
            {
                case ValidationException exception:
                    throw new Status
                    {
                        Code = (int)Code.InvalidArgument,
                        Message = "Bad request",
                        Details =
                        {
                            Any.Pack(
                                new BadRequest
                                {
                                    FieldViolations =
                                    {
                                        exception.Errors.Select(x => new BadRequest.Types.FieldViolation { Field = x.PropertyName, Description = x.ErrorMessage })
                                    }
                                })
                        }
                    }.ToRpcException();
                case ForbiddenAccessException:
                    throw new Status { Code = (int)Code.PermissionDenied, Message = "Permission denied" }.ToRpcException();
                case UnauthorizedAccessException:
                    throw new Status { Code = (int)Code.Unauthenticated, Message = "Unauthenticated" }.ToRpcException();
                case NotFoundException exception:
                    throw new Status { Code = (int)Code.NotFound, Message = exception.Message }.ToRpcException();
                default:
                    if (_webHostEnvironment.IsDevelopment())
                    {
                        throw new Status
                        {
                            Code = (int)Code.Internal,
                            Message = "Internal error",
                            Details =
                            {
                                Any.Pack(e.ToRpcDebugInfo())
                            }
                        }.ToRpcException();
                    }

                    throw;
            }
        }
    }
}

ASP.NET Core configuration of gRPC

The final pattern to tie all the above together is the GrpcConfiguration class which is called from Startup.cs / Program.cs to register everything as needed:

public static class GrpcConfiguration
{
    public static IServiceCollection ConfigureGrpc(this IServiceCollection services)
    {
        services.AddGrpc(
            options =>
            {
                options.Interceptors.Add<GrpcExceptionInterceptor>();
            });
        services.AddGrpcReflection();
        return services;
    }

    public static IEndpointRouteBuilder MapGrpcServices(this WebApplication app)
    {
        app.MapGrpcService<ClientsService>();
        app.MapGrpcService<ClientsTraditionalService>();

        if (app.Environment.IsDevelopment())
        {
            app.MapGrpcReflectionService();
        }

        return app;
    }
}

This pattern will automatically add services as they are exposed through the Services Designer in Intent Architect.

Note

gRPC Server Reflection is automatically enabled when the process is running in a development environment to allow easy testing with tools such as gRPCurl and gRPCui.

Authentication and Authorization

gRPC can use ASP.NET Core authentication and this module will automatically add Authorization and AllowAnonymous attributes to services and methods as needed depending on how you've modelled service security in the Intent Architect Services Designer.
